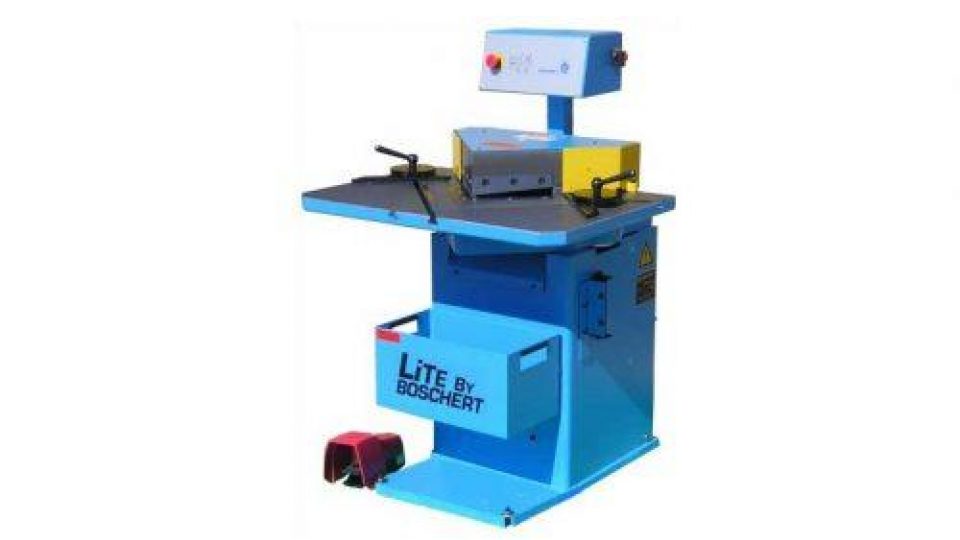

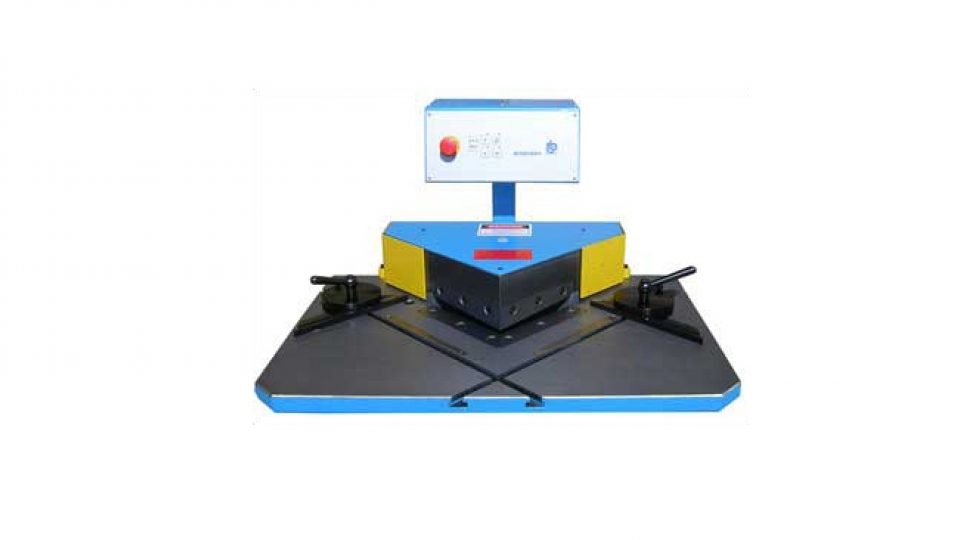

Boschert Lite Notcher

Efficiency with Ease

Description

All Boschert notchers offer superior performance, clean cuts and high accuracy. The Lite notcher features Boschert’s patented TRI-GIDE® technology, a 3-point ram guidance system that gives the notching machine it’s world-famous precision and durability.

The Lite notcher with a 4.5 horsepower hydraulic motor offers front-to-back cutting with Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping. Choose from a 90° fixed angle or variable angles from 30° to 120°. Capacity is 5/32” mild steel capacity and 10-gauge stainless steel capacity, with notch widths of 8-7/8” x 8 7/8” for a 90° notch. Each blade is complemented by a parallel engraved brass scale and T-slot.

The Lite notcher is adjustable up to 50 strokes per minute and can be operated with a moveable electric foot pedal in jog, single or continuous mode. The Lite notching machine is equipped with a 35” wide by 25” deep table with a milled bed surface so materials do not float or stick and is configured with two heavy-duty adjustable stops with 10″ horizontal bars. It also comes with a scrap bucket.

Notcher Technical Data

Cutting Capacity 5/32" (10ga.)
Cut Length 8-7/8" x 8-7/8"
Cut Angle 90°
Machine Weight 1452 lbs
Overall Dimensions 49" x 36" x 53"
Table Dimensions 35" wide by 25"
2nd Station -
Motor Size 4.5 hp
