Boschert EL Series

Versatile Punching and Forming for Short Runs

Description

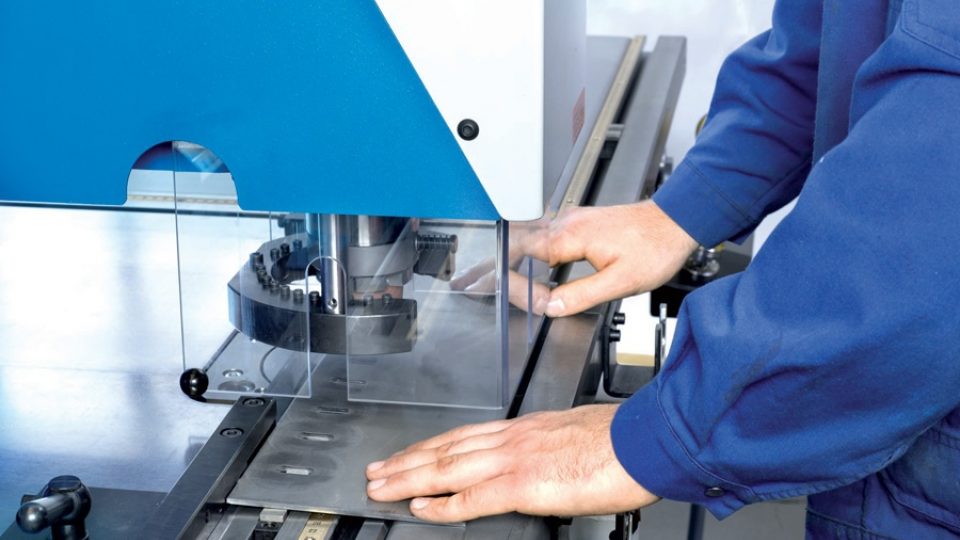

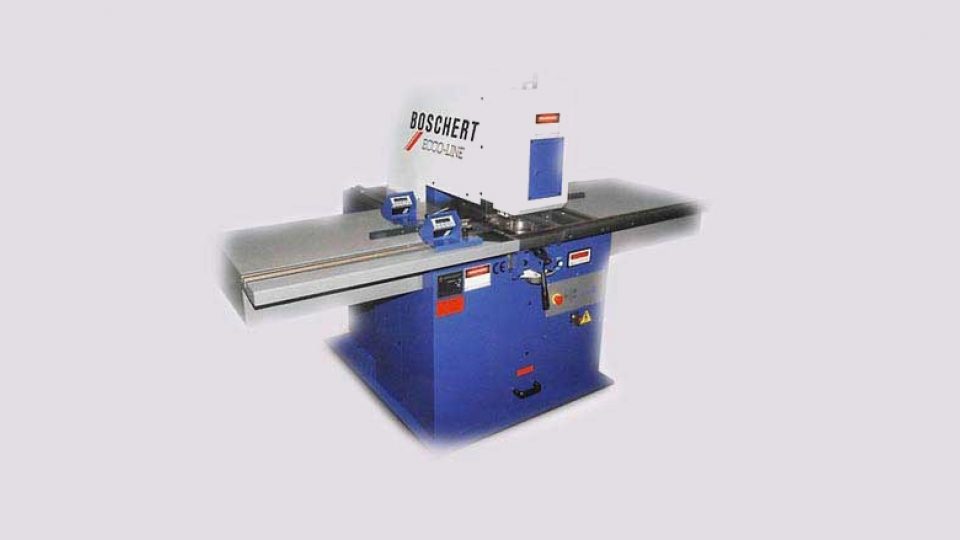

The Boschert EL series manually gauged punching machines deliver high performance for small and medium production runs, and single pieces and prototypes. Each of the four hydraulically powered, manually gauged punching machines are equipped with at least 36 tons of punching force, and some with up to 60 tons. A heavy-duty tool adapter with rigid ram guidance delivers precise punch and die alignment. The series provides features like self-regulating overload protection, stripper holder and plate, Trumpf or 28XX Tooling System, maintenance-free hydraulic drive, constant punching pressure and a variety of available adapters. Two-axis digital readouts can be mounted to any EL series machine assuring the highest accuracy and increased productivity.

Machine Specifications

test
Tonnage
Optional Tonnage
Throat Depth (Y-axis)
Longitudinal (X-axis)
Max Punching Diameter
Max Sheet Thickness
Stroke Length
Floor Space Required
Approximate Weight
EL300
36
50
12
20
4
0.5
1.2
52 x 40
2,750 lb.
EL500
36
50
20
40
4
0.5
1.2
100 x 63
5,500 lb.
EL750
36
50
30
60
4
0.5
1.2
140 x 66
6,400 lb.
EL1000
36
50
40
80
4
0.5
1.2
174 x 84
9,900 lb.
