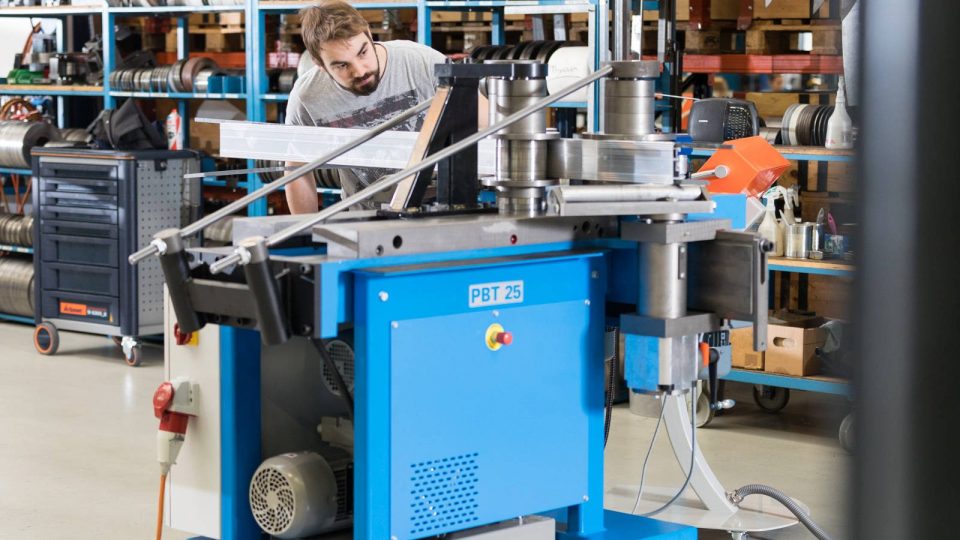

PBT 25 Profile bender

Modular Build Delivers Versatility

Description

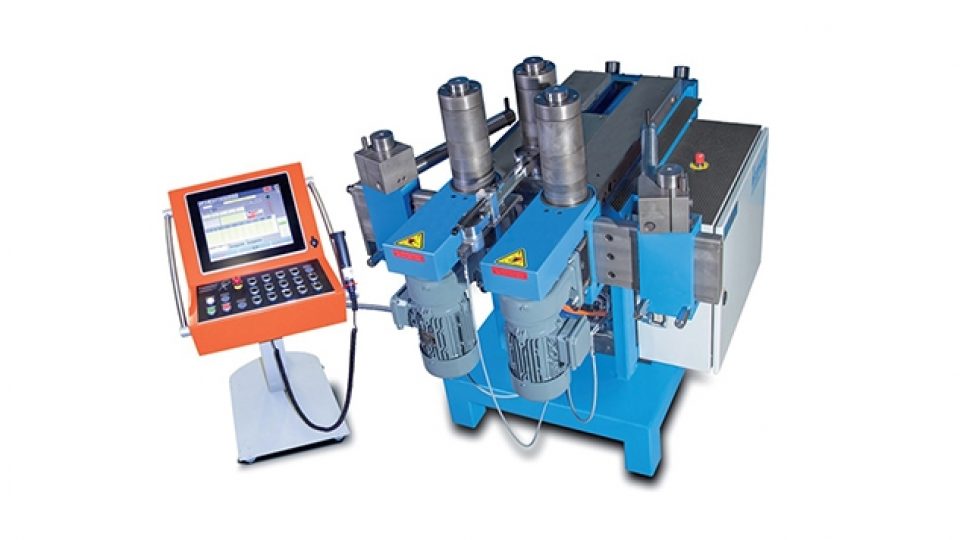

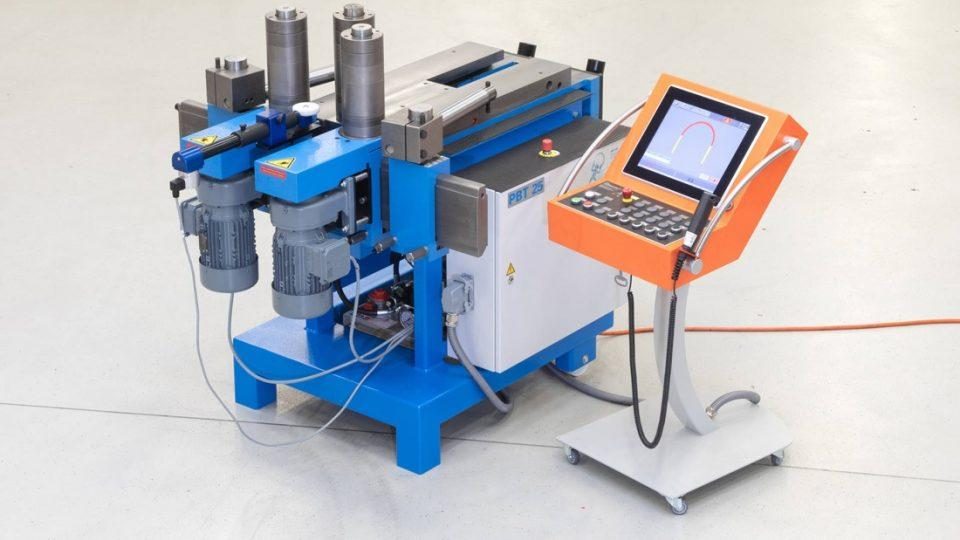

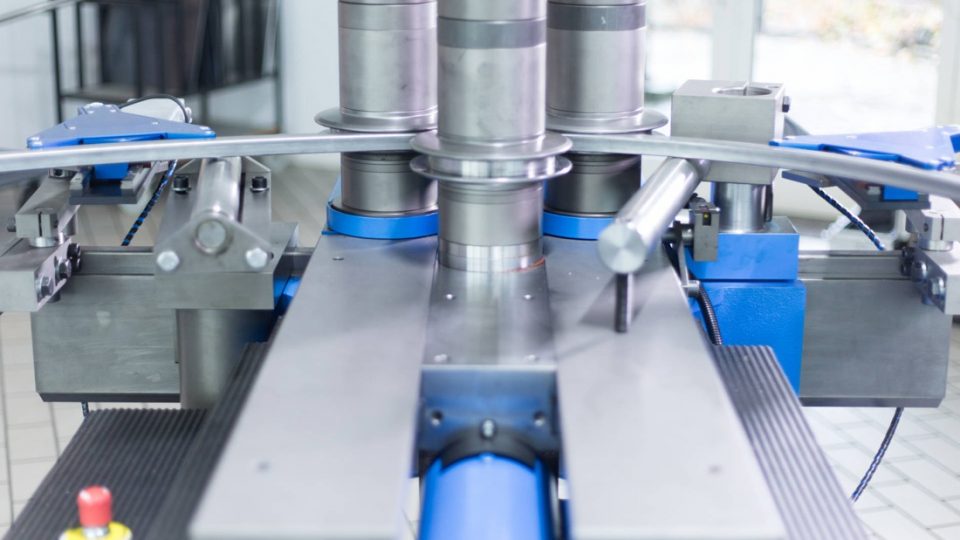

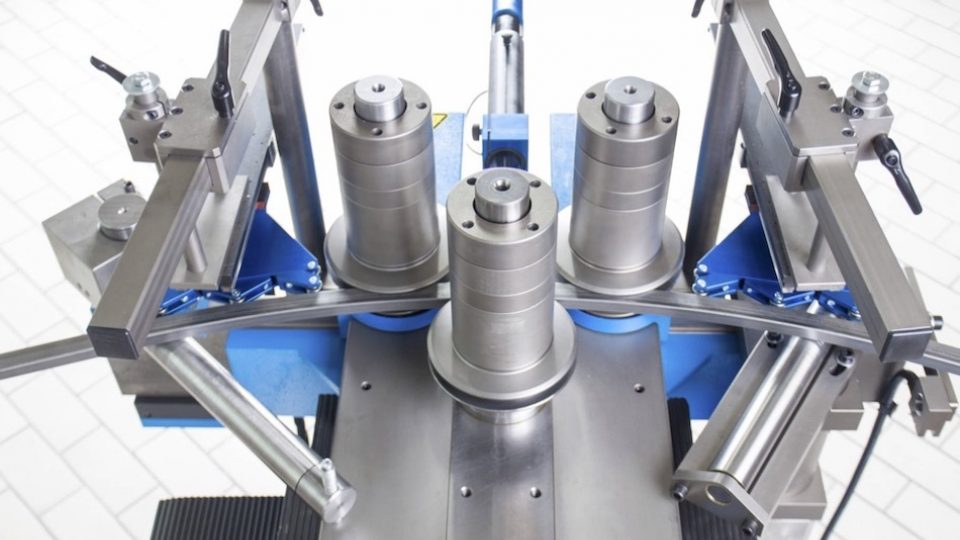

The capability of the PBT 25 profile bending machine was developed with considerable input from experienced PBT customers. This versatile profile bending machine features master Swiss craftsmanship and modular tooling that makes it simple to convert to new applications quickly and efficiently. The machine has three individually-driven and infinitely adjustable rollers which can bend large cross-sections, including part profiles up to 11.81” (300mm) in height. The machine’s flexible configuration allows operators to work from both sides. Modern ergonomic design makes the profile bender PBT 25 comfortable to operate, while PBT’s powerful CNC control systems keep operation simple and smooth for operators of any experience level. The PBT 25 is used in the automotive, aerospace, materials handling technology, architectural paneling and lighting, window construction and structural profile industries.

Consultation, training and commissioning are included with purchase.

Technical Data of the PBT 25 bender

test
Flat Bar
Power
All three rollers driven individually:Manual:PC400: continuous
Maximum Torque per roller
Front Roller Adjustable
Tool Holding Fixture ∅
Lift Height
Hydraulic Drive
Roller Driver
Power Supply
Accuracy X Axis – Manual/PC400
Length
Width
Height
Weight
Specs
½” x 6″ to 12″ Dia.
27 t
8/12/24 rpm / 1 – 24 rpm
1600 Nm
200 – 1000mm
105mm
265mm
3 kW
3x 1.1 kW
400V/16A
1/100mm
1’480mm
1’200mm
1’365mm
1’150 kgs (2,535 lbs.)
