Boschert CP EVO Series Punching Machine

Simple and Precise CNC Punching

Description

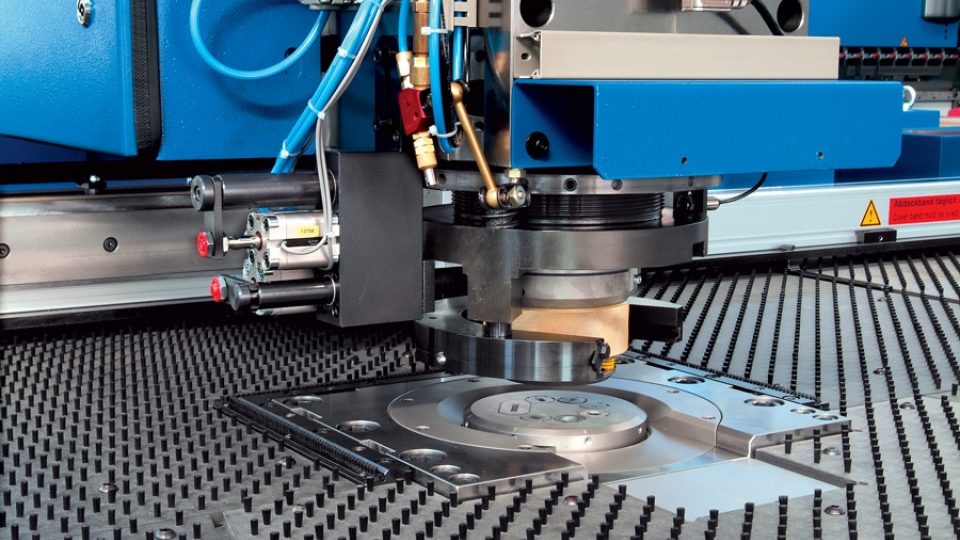

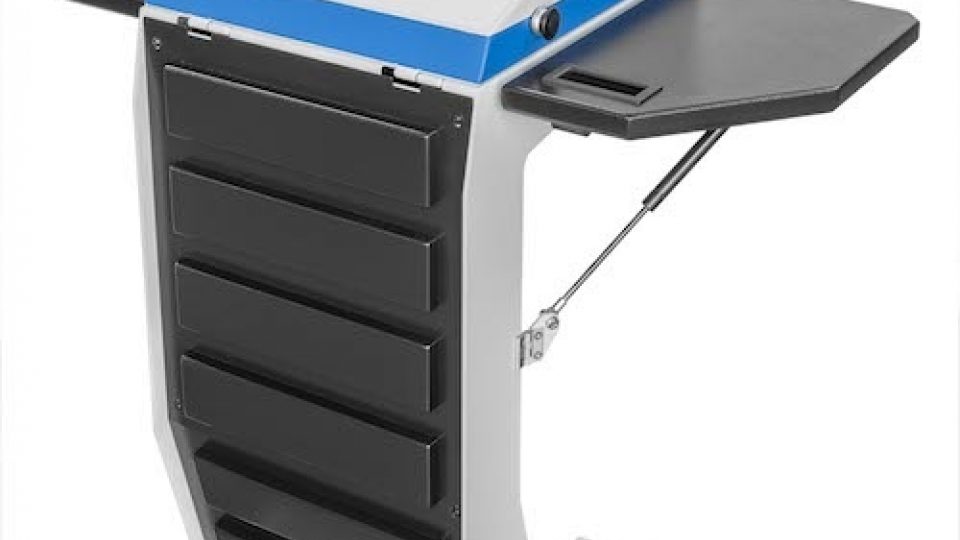

A classic CNC punching machine in four configurations, the Boschert CP EVO Series punching machine is composed of solid welded steel construction that can handle punching metal sheets up to 1/2” thick. Standard features include a TFT 10.5” color display, detached control panel, accuracy-focused construction and industrial-grade CPU.

Download Brochure

Punching Machine Specs

test

Working Range

Space Requirements

Weight (lbs.)

CP – 750

30″ x 80″

13’6″ x 13′

16,250

CP – 1000

40″ x 80″

14’8″ x 13′

20,250

CP – 1250

50″ x 80″

16’6″ x 13′

23,100

CP – 1500

60″ x 80″

18′ x 13′

26,000

Punching Machine Technical Data

Maximum sheet length

32'

Maximum Sheet Thickness

With standard clamps	1/4″
With special clamps	1/2″
With RevoTool	1/4″

Maximum Punching Force

Standard 36 tons	36 tons
Optional	50 tons

Maximum workpiece weight

440 lbs.

Maximum positioning speed

X axis	2,365 ipm
Y axis	1,180 ipm
Combined (x & y diagonally)	2,650 ipm

Maximum punching speed

Standard hydraulics	400 spm
High speed (option w/ oil chiller)	800 spm

Maximum punch diameter	4″
Maximum stroke length	3.54″
RevoTool positions	4, 6, 7 or 8
Tool change time, manual	10 – 15 sec.
Tool change time, RevoTool	2 – 4 sec.

Electrical Consumption at 230 / 460 Volts

Cont. operation (1/8″ material)	4.9 / 7.7 kW/h
Cont. operation (1/4″ material)	5.4 / 8.75 kW/h
Amperage	25 / 35 Amps

Hydraulic motor	7.5 / 15 HP
Comp. air requirement	min. 4.5 bar / 65 psi
Hyd. oil resv.	115 liter/160 liter high speed
