Silver Eagle Notchers

Notching Flexibility with a Large Capacity Table

Description

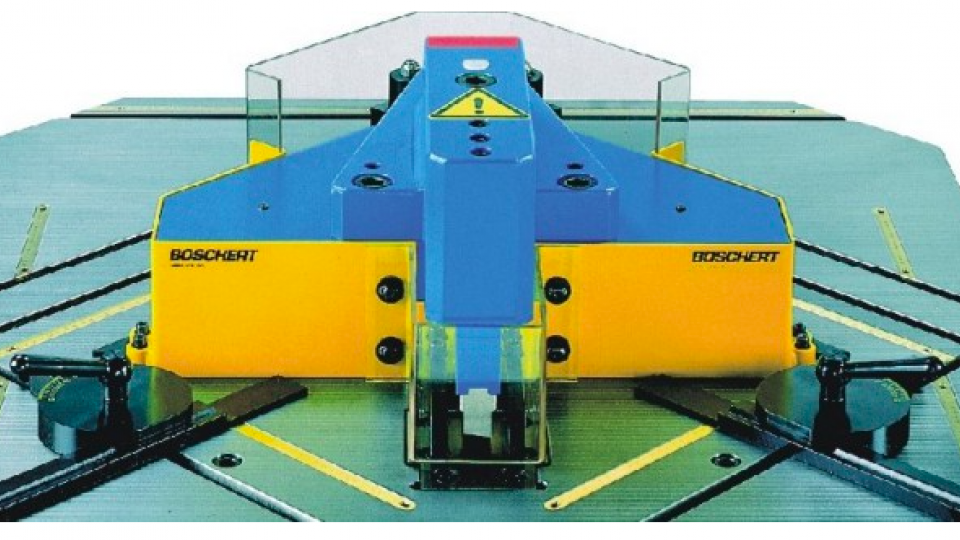

All Boschert notchers offer superior performance, clean cuts and high accuracy. The four notchers in the Silver Eagle series feature Boschert’s patented TRI-GIDE® technology, a 3-point ram guidance system that gives the machine it’s world-famous precision and durability.

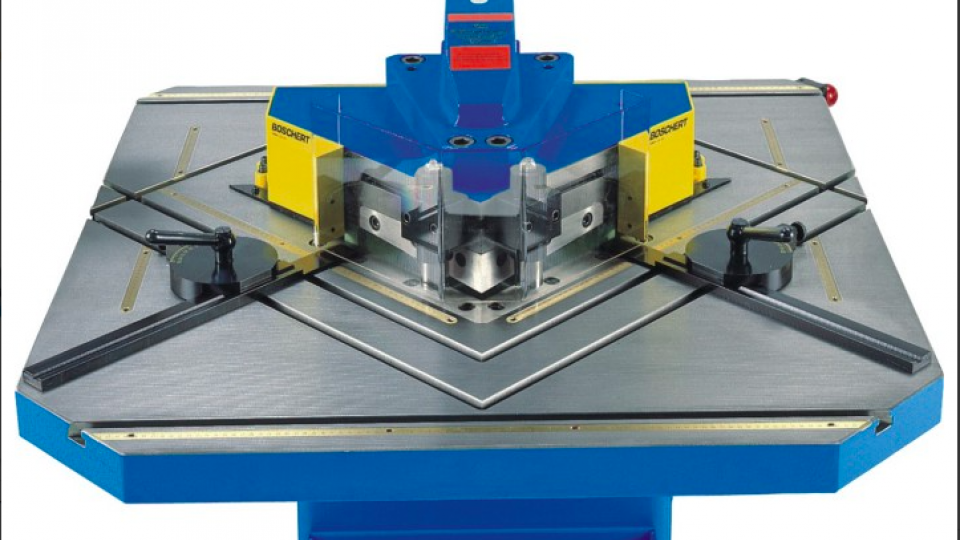

The Silver Eagle notchers offer 8-7/8″ x 8-7/8″ 90° fixed angle front to back cutting with 1/4” mild steel or 5/32 stainless steel capacity. The 43-inch wide by 31-inch deep super-size table sets the Silver Eagle series apart. The table has a milled bed surface, so materials do not float or stick. The Silver Eagle notching machines are adjustable from 35 to 50 strokes per minute. They feature an internal stop for shearing, two material hold downs, two heavy duty stops with 12″ sliding bars, scale and T-shot left to right at front of bed, scale and T-shot parallel to the blades and scale on left and right side of the tabletop. They are wired for 220v/60c/3ph and feature a moveable electrical foot pedal and scrap buckets.

The Silver Eagle notchers can also be configured with a second station on the rear of the table that can be fitted as either a coping station or a punching station. Alternatively, the Silver Eagle Quick notcher offers a second station that can be changed between punching, coping and notching.

  • The Silver Eagle with the coping station has capacities for 5/32″ (4mm) mild steel (mild steel designated as 50,000 psi) or 1/8″ (3mm) stainless steel (stainless steel is designated as 75,000 psi). It can cope 3.937″ deep by 1″ to infinity by moving the stock.

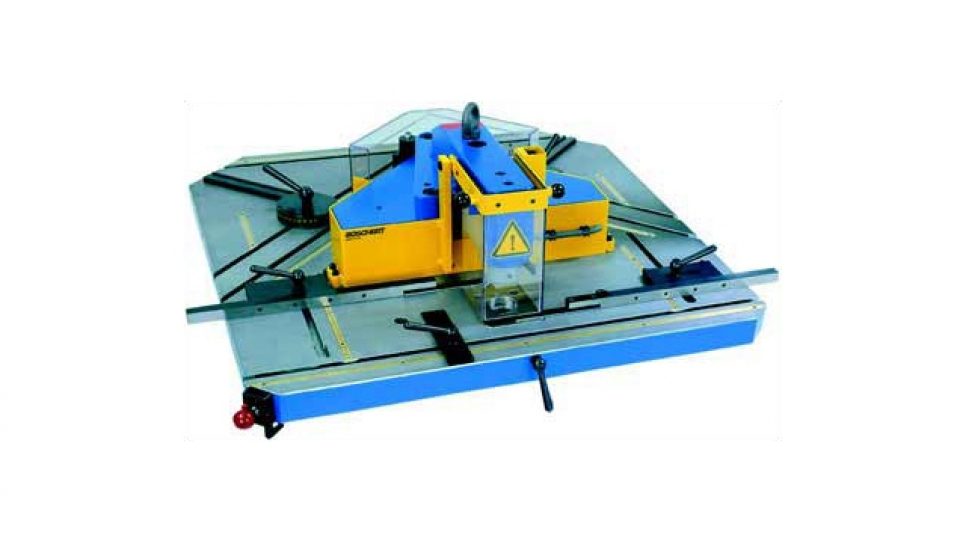

  • The Silver Eagle with the punching station features Trumpf-style tooling with capacities of 5/32″ (4mm) mild steel (mild steel designated as 50,000 psi), 1/8″ (3mm) stainless steel (stainless steel is designated as 75,000 psi). Its maximum punch size is 1 1/8 inches. The punching table is 43-inches wide by 13-inces deep.

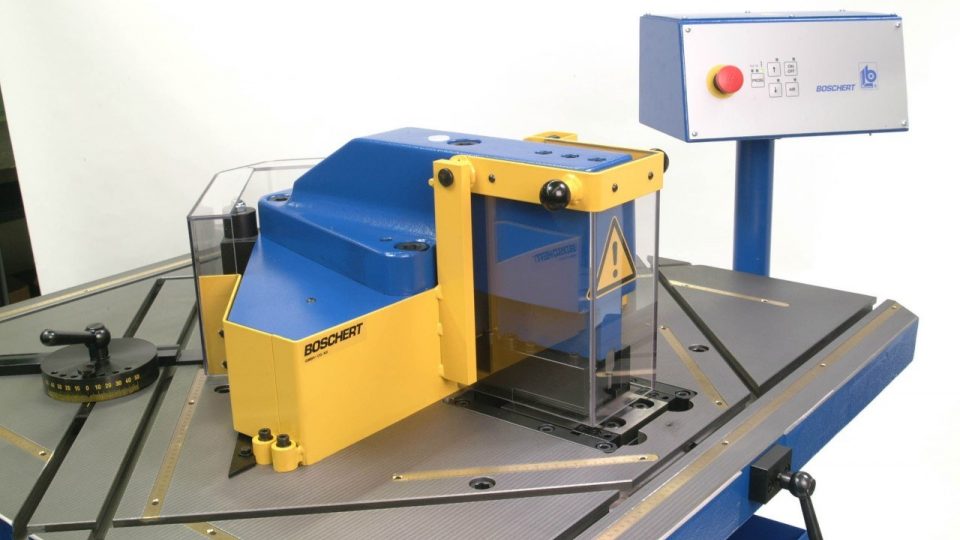

  • The Silver Eagle Quick notcher is equipped with quick-change coping, punching or notching tool sets. The second notching station features 4” blades mounted in a cassette with the correct clearance preset. It has capacities of 5/32″ mild steel (mild steel designated as 50,000 psi), 1/8″ stainless steel (stainless steel is designated as 75,000 psi). Notch angles can be adjusted from 14- to 45-degree angles.

Silver Eagle Notcher Technical Data

test
Cutting Capacity
Cut Length
Cut Angle
Machine Weight
Overall Dimensions
Table Dimensions
2nd Station
Motor Size
Silver Eagle (LB 13)
1/4" (5/32")
8-7/8" x 8-7/8"
90°
2200 lbs
53" x 43" x 53"
43" wide by 31"
-
6.5 hp
Silver Eagle w/ Cope
1/4" (5/32")
8-7/8"x8-7/8"
90°
2420 lbs
53" x 43" x 50"
43" wide by 44.5"
1" by 4"
6.5 hp
Silver Eagle w/ Punch
1/4" (5/32")
8-7/8" x 8-7/8"
90°
2420 lbs
53" x 43" x 50"
43" wide by 44.5"
ø 1.2"
6.5 hp
Silver Eagle Quick
1/4" (5/32")
8-7/8" x 8-7/8"
90°
2420 lbs
53" x 43" x 50"
43" wide by 44.5"
1 x 4" 15-45° x 4"
6.5 hp
