Bendo

Bending for High Production Jobs

Description

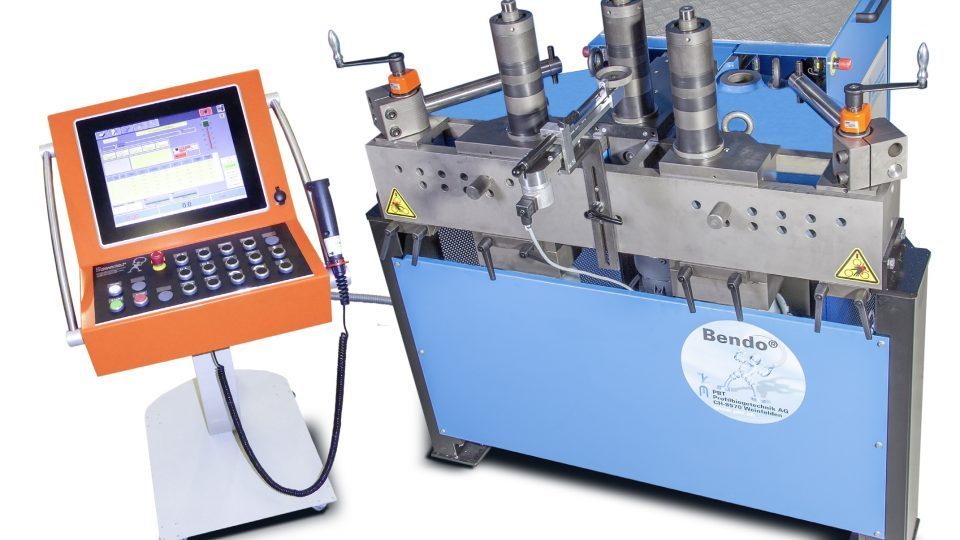

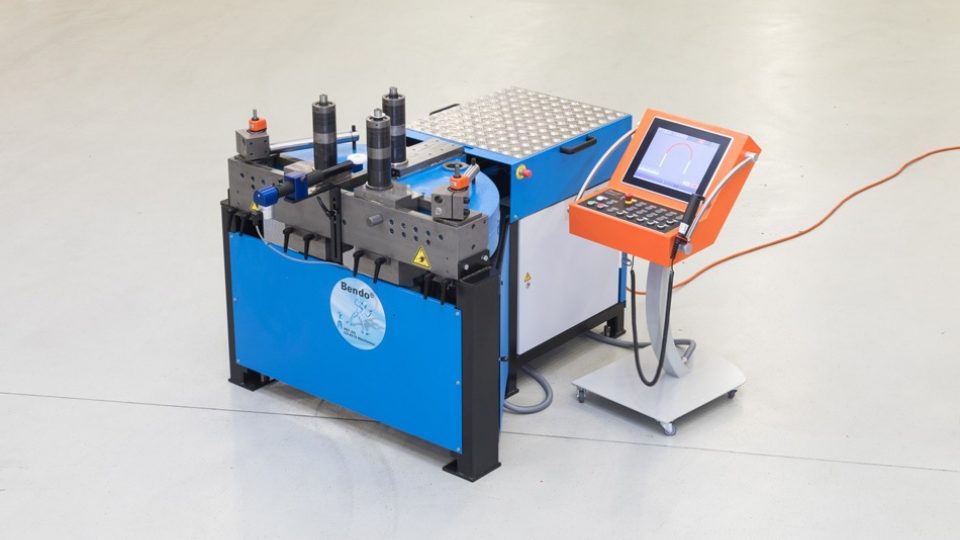

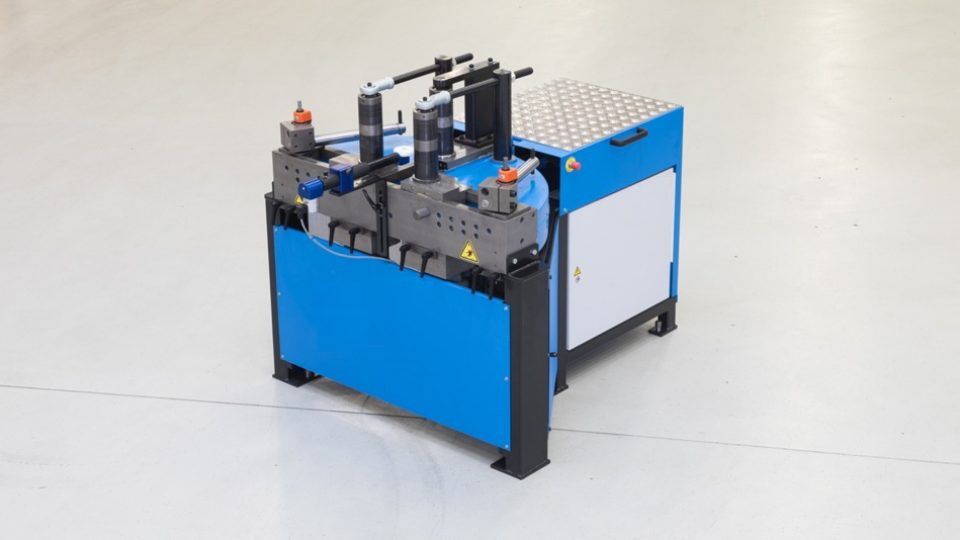

With the Bendo profile bending machines, PBT has created something truly compelling. Sturdy construction and modern, ergonomic design make the Bendo highly compatible with today’s manufacturing environment. The Bendo bender can be paired with one of PBT’s powerful CNC controls for extreme accuracy, simplicity and speed. The profile bending machine’s configuration allows operators to work from both sides. It features a roller height of 300mm (11.81”) with an infinitely adjustable front roller distance and an option for extra-tall shafts. Bendo machines can be equipped with optional shaft adapters that change the tool shaft diameter from 65mm to 105mm. This allows a greater range of existing tooling to be used with the machine. The PBT Bendo is used for applications in automotive, aerospace, materials handling, metalworking, construction and structural steel engineering industries.

Consultation, training and commissioning are included with purchase.

Technical Data of the Bendo bending machine

Flat Bar ½” x 6″ to 12″ Dia.
Power 22 t
All three rollers driven individually: PC50: 8/12/24 rpm
All three rollers driven individually: PC250/300: continuous 1 – 30 rpm
Maximum Torque per roller 1600 Nm
Front Roller Adjustable 7.8″ – 40″
Tool Holding Fixture ∅ 65mm / 105mm
Lift Height 10.24″
Hydraulic Drive 4 HP
Roller Driver 3x 1.5 HP
Power Supply 230/460V/16A
Accuracy X Axis – PC50/PC300 0.0004″
Length 5′
Width 5′
Height 4’6″
Weight 2,535 lbs.
