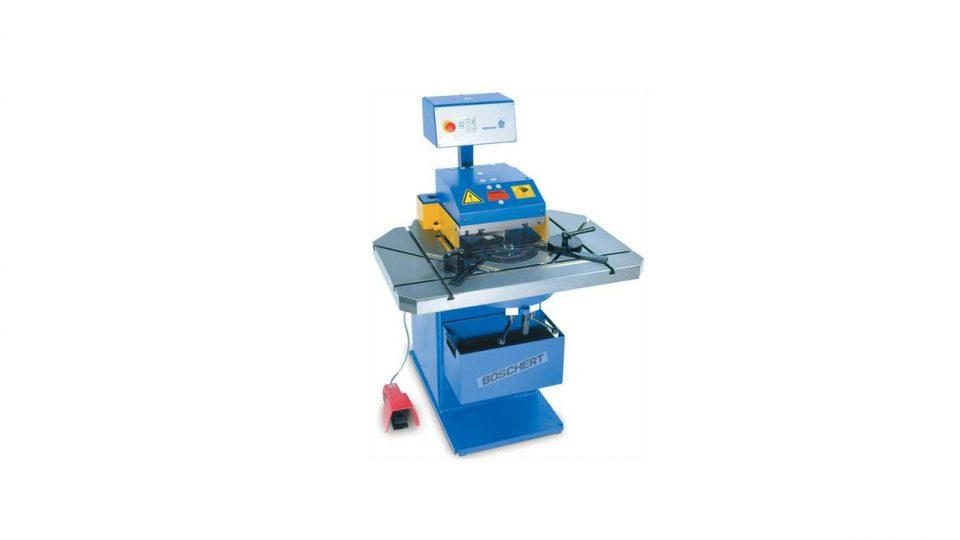

Vari IV Hydraulic Notchers

Flexibility from Every Angle

Description

All Boschert notchers offer superior performance, clean cuts and high accuracy. The three notchers in the Vari IV series feature Boschert’s patented TRI-GIDE® technology, a 3-point ram guidance system that gives the machine it’s world-famous precision and durability.

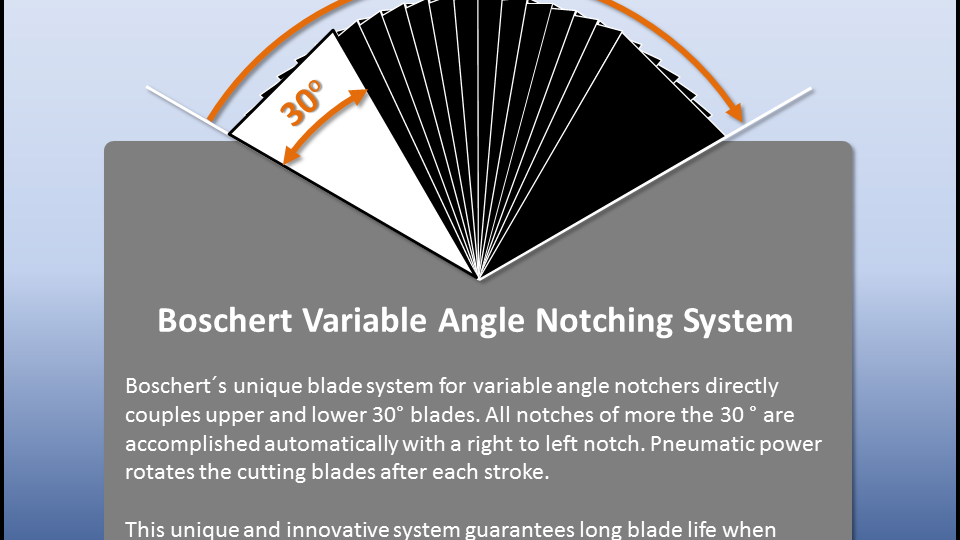

Boschert variable angle notchers offer a unique approach to notching that directly couples the upper and lower blades, a system that guarantees longer blade life compared to other systems. The Vari IV notchers accommodate all angles from 30° to 120° without blade or clearance changes. A 30° upper blade is directly connected to two corresponding lower blades. All notches of more than 30° are accomplished automatically with a right and left notch. Pneumatic power rotates the blades after each stroke.

The Vari IV notchers also offer a 5.9” x 5.9” 90° notching capability with fixed angle front to back cutting. They deliver a 5/32” mild steel (4mm) and 11-gauge stainless steel capacity. The Vari IV notcher’s 39.4-inch wide by 25.6-inch deep table features a milled bed surface, so materials do not float or stick. Blades shift by pneumatic power. Additionally, the Vari IV offers Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping, a 6.5 horsepower motor, a moveable electric foot pedal and scrap buckets.

The Vari IV notchers can also be configured with a second station on the rear of the table that can be fitted as either a coping station or a punching station.

  • The Vari IV with the coping station has capacities for 5/32″ (4mm) mild steel (mild steel designated as 50,000 psi) or 1/8″ (3mm) stainless steel (stainless steel is designated as 75,000 psi). It can cope 3.937″ deep by 1″ to infinity by moving the stock.
  • The Vari IV with the punching station features Trumpf-style tooling with capacities of 5/32″ (4mm) mild steel (mild steel designated as 50,000 psi), 1/8″(3mm) stainless steel (stainless steel is designated as 75,000 psi). Its maximum punch size is 1 1/8 inches. The punching table is 43-inches wide by 13-inces deep.

Variable Angle Notcher Technical Data

test
Cutting Capacity
Cut Length
Cut Angle
Machine Weight
Overall Dimensions
Table Dimensions
2nd Station
Motor Size
Vari-IV (Mini S)
5/32" (10ga.)
5.9" x 5.9"
30-120°
1870 lbs
49" x 39" x 46"
39" wide by 26"
-
6.5 hp
Vari-IV w/ Cope
5/32" (10ga.)
5.9" x 5.9"
30-120°
2200 lbs
51" x 39" x 49"
39" wide by 44.5"
1" by 4"
6.5 hp
Vari-IV w/ Punch
5/32" (10ga.)
5.9" x 5.9"
30-120°
2200 lbs
51" x 39" x 51"
39" wide by 44.5"
ø 1.2"
6.5 hp
