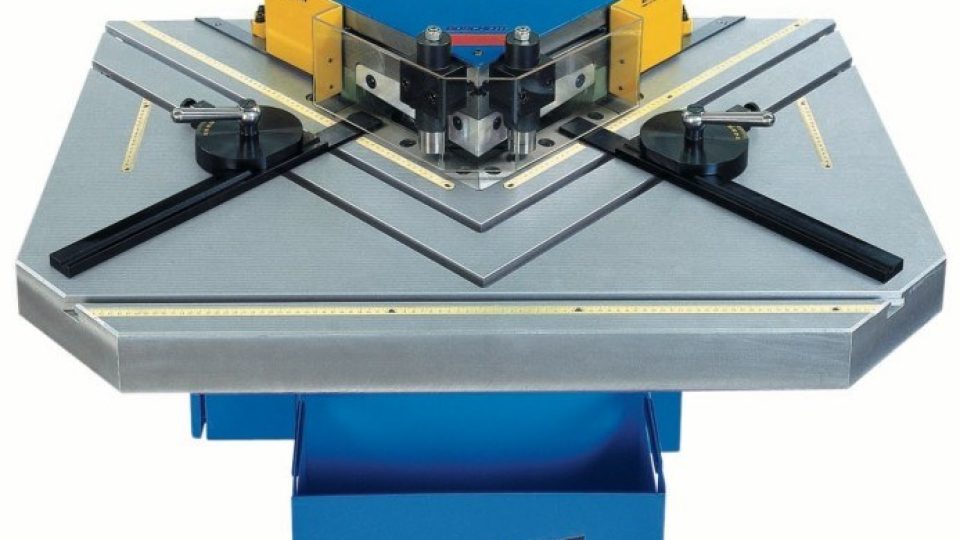

Boschert Eagle/Eagle 250 Notchers

Flexible Notching Power

Description

All Boschert notchers offer superior performance, clean cuts and high accuracy. The Eagle and Eagle 250 notchers both feature Boschert’s patented TRI-GIDE® technology, a 3-point ram guidance system that gives the machine it’s world-famous precision and durability.

The Eagle & Eagle 250 notchers with a 6.5 horsepower hydraulic motor, offer front to back cutting to hold material against its stop. Both feature a cope, Hi-Carbon, Hi-Chrome blades, an internal stop for shearing, two patented 12″ combination horizontal hold down and stop bars, engraved brass scales, a moveable electric foot pedal and a scrap bucket

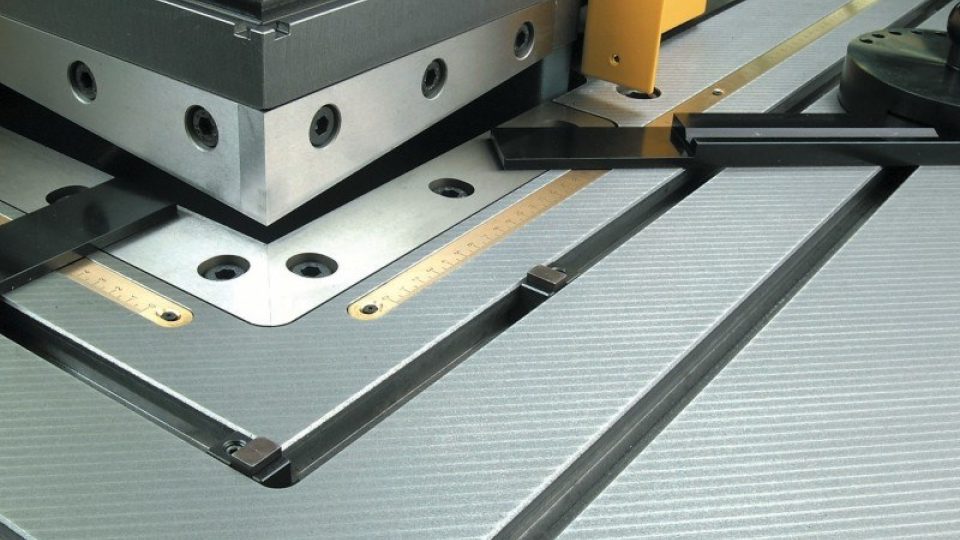

The Eagle notching machines are adjustable up to 50 strokes per minute in jog, single or continuous mode. They have a 35″ wide by 25″ deep table with a milled bed surface so materials do not float or stick. The Eagles’ capacity is 1/4” for mild steel and 3/16” for stainless steel, with notch widths of 8-7/8” x 8 7/8” for a 90° notch. Choose from a 90° fixed angle or variable angles from 30° to 120°.

Additionally, the Eagle 250 hydraulic notcher offers two material hold downs and a special blade guard.

Eagle Notcher Technical Data

Cutting Capacity 1/4" (3/16")
Cut Length 8-7/8" x 8-7/8"
Cut Angle 90°
Machine Weight 1540 lbs
Overall Dimensions 49" x 36" x 53"
Table Dimensions 35" wide by 25"
2nd Station -
Motor Size 6.5 hp
