Helix

Large Profile Bending with Super-Power

Description

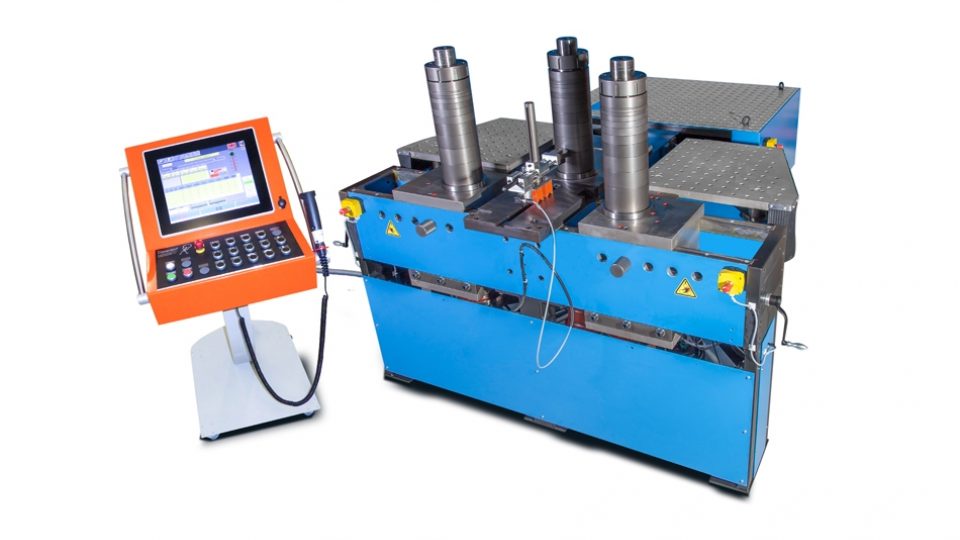

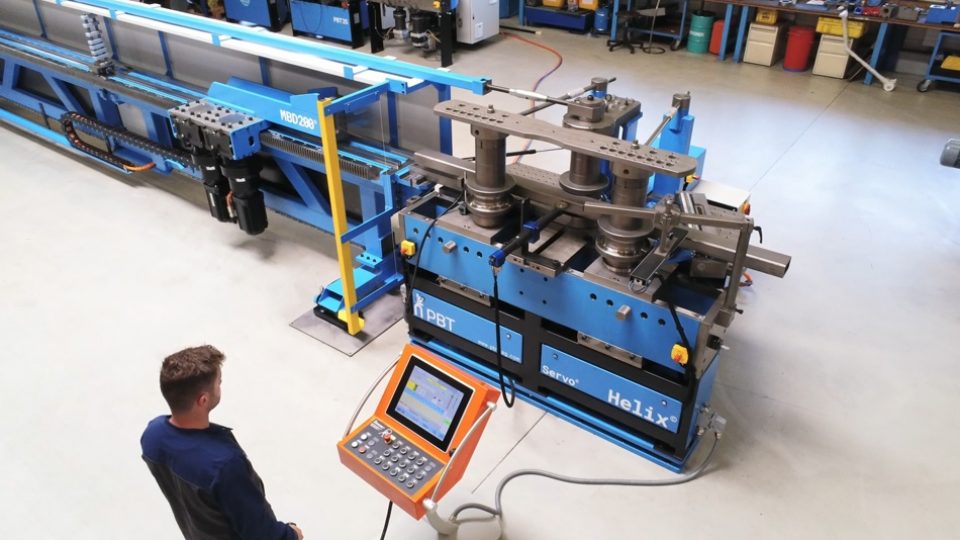

The modern ergonomic design of the PBT Helix Servo makes it the perfect profile bending machine for extra-large profiles. The PBT Helix® delivers 75 tons of power for those truly heavy-duty jobs. With Swiss-quality and modern design, this bender comes equipped with PBT’s high-performance PC400 CNC control system. The front roller distance is widely adjustable depending on profile size and radius. At the movable CNC control panel, a 15” touchscreen displays program values to an accuracy of 1/100mm. Applications include load bearing beams, and structural aluminum and steel profiles.

Consultation, training and commissioning are included with purchase.

Technical Data

Flat Bar 1-¼” x 10″ to 35″ Dia.
Power 75 Ton (65 t)
All three rollers driven individually:PC400: continuous 1 – 8 rpm
Maximum Torque per roller 6,642 ft. lbs. (9000 Nm)
Front Roller Adjustable 14.17″ – 52.4″ (360 – 1330mm)
Tool Holding Fixture ∅ 5.12″ (130mm)
Lift Height 17.52″ (445mm)
Hydraulic Drive 30 HP (22 kW)
Roller Driver Hydraulic
Power Supply 208/230/460
Accuracy X Axis – PC400 0.003937″ (1/100mm)
Length 95″ (2’415mm)
Width 85″ (2’163mm)
Height 62.6″ (1’590mm)
Weight 12,786 lbs. (5’800 kgs)
