G-HD Press brake Series

Heavy Duty Press Brake Capacity

Description

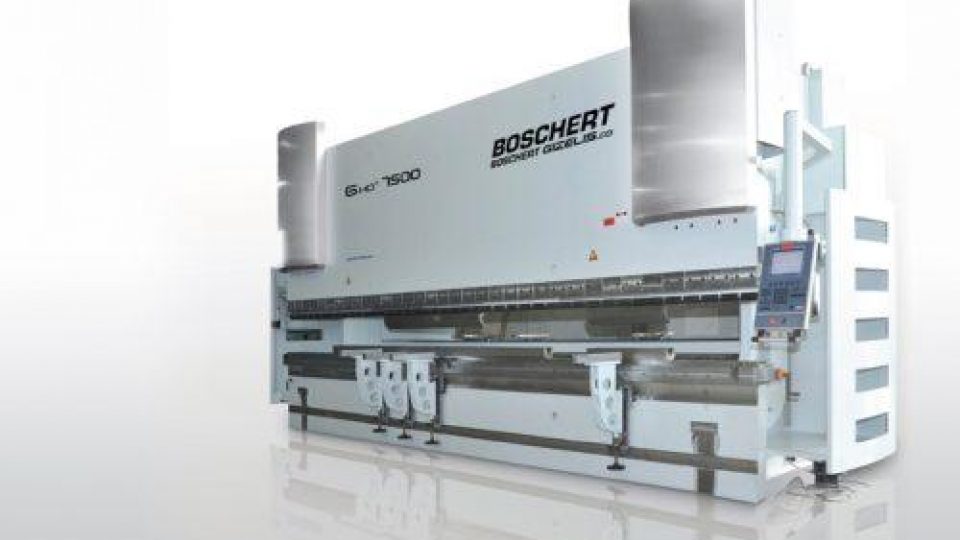

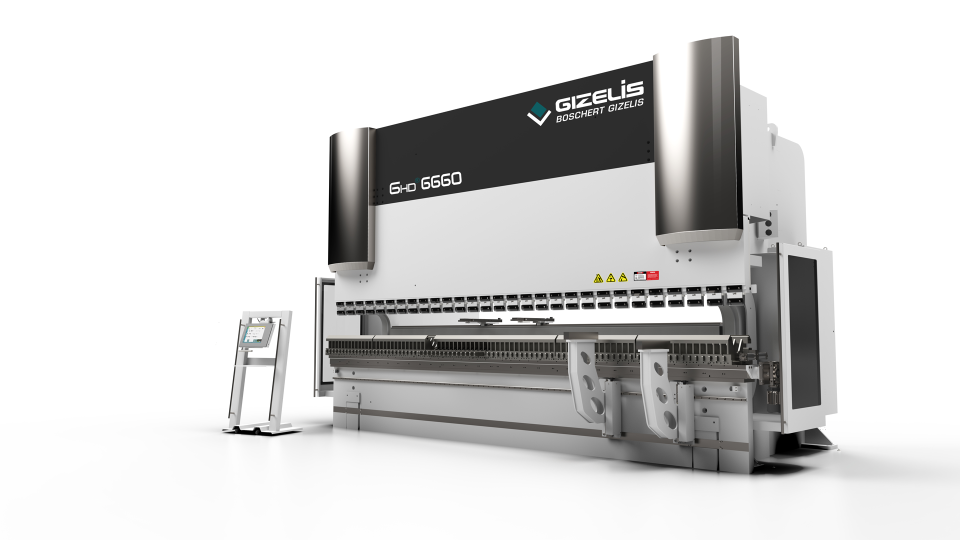

The Boschert Gizelis HD press brake series offers many of the benefits of the G-Bend Plus series with extra heavy duty (HD) capacities.

With bending forces from 330 to 880 tons, the 10 press brakes in the G-HD series accommodate bending lengths from 3100 mm to 7100 mm and usable space from 2550 mm to 6050 mm.

Boschert Gizelis G-HD press brakes are controlled with a user-friendly color touchscreen control and 2D graphical software. The G-HD press brake series features a single-axis back gauge system and mechanical upper and lower tool clamping. G-HD press brakes have double upper and lower roller bearings for accurate and fast beam movement. The stroke and daylight measurements of the G-HD series can be customized to meet customer-specific needs. The G-HD series have a standard 500 mm throat, 570 mm of daylight and a stroke length of 320 mm.

An extra heavy-duty welded steel side frame increases rigidity and minimizes part deformation. The hydraulic press brake G-HD series features an efficient, quiet and extremely accurate hydraulic system. The machines utilize Y1 and Y2 independent hydraulic cylinders and proportional valve technology.
