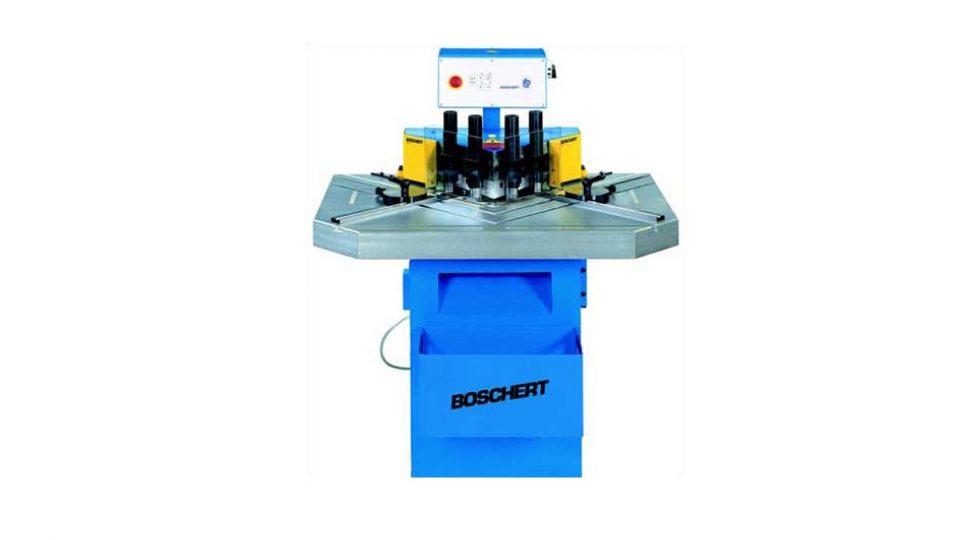

Golden Eagle Notchers

Flexible Capability with 3/8-Inch Capacity

Description

All Boschert notchers offer superior performance, clean cuts and high accuracy. The four notchers in the Golden Eagle series feature Boschert’s patented TRI-GIDE® technology, a 3-point ram guidance system that gives the machine it’s world-famous precision and durability.

The Golden Eagle notchers offer 8-7/8″ x 8-7/8″ 90° fixed angle front to back cutting with 3/8” mild steel or 1/4 stainless steel capacity. The Golden Eagle’s 43-inch wide by 31-inch deep super-size table features four material hold-downs. The table has a milled bed surface, so materials do not float or stick. The Golden Eagle machines are adjustable from 35 to 50 strokes per minute. They feature an internal stop for shearing, three sets of engraved brass scales for accurate and easy setup, two heavy duty stops with 19″ sliding bars and engraved brass scales. They feature a moveable electrical foot pedal and scrap buckets.

The Golden Eagle notchers can also be configured with a second station on the rear of the table that can be fitted as either a coping station or a punching station. Alternatively, the Golden Eagle Quick notcher offers the second station that can be changed between punching, coping and notching.

  • The Golden Eagle with the coping station has capacities for 5/32″ (4mm) mild steel (mild steel designated as 50,000 psi) or 1/8″ (3mm) stainless steel (stainless steel is designated as 75,000 psi). It can cope 3.937″ deep by 1″ to infinity by moving the stock.
  • The Golden Eagle with the punching station features Trumpf-style tooling with capacities of 5/32″ (4mm) mild steel (mild steel designated as 50,000 psi), 1/8″ (3mm) stainless steel (stainless steel is designated as 75,000 psi). Its maximum punch size is 1 1/8 inches. The punching table is 43-inches wide by 13-inces deep.
  • The Golden Eagle Quick notcher is equipped with quick-change coping, punching or notching tool sets. The second notching station features 4” blades mounted in a cassette with the correct clearance preset. It has capacities of 3/8″ mild steel (mild steel designated as 50,000 psi), 1/4″ stainless steel (stainless steel is designated as 75,000 psi). Notch angles can be adjusted from 14- to 45-degree angles.

Notcher Technical Data

test
Cutting Capacity
Cut Length
Cut Angle
Machine Weight
Overall Dimensions
Table Dimensions
2nd Station
Motor Size
Golden Eagle LB15/2000
3/8"* (1/4")*
8-7/8" x 8-7/8"
90°
2420 lbs
53" x 43" x 50"
43" wide by 31"
-
6.5 hp
Golden Eagle w/ Cope
3/8"* (1/4")*
8-7/8" x 8-7/8"
90°
2640 lbs
53" x 43" x 50"
43" wide by 44.5"
1" by 4"
6.5 hp
Golden Eagle w/ Punch
3/8"* (1/4")*
8-7/8" x 8-7/8"
90°
2640 lbs
53" x 43" x 53"
43" wide by 44.5"
ø 1.2"
6.5 hp
Golden Eagle Quick
3/8"* (1/4")*
8-7/8" x 8-7/8"
90°
2640 lbs
53" x 43" x 50"
43" wide by 44.5"
1 x 4" 15-45° x 4"
6.5 hp
