3D Bending Devices

PBT’s 3-D Bending Device and Twister Device bring even greater versatility – while retaining accuracy – for operators bending round tube materials into spirals or bending more complex profile shapes in 3-D forms.

• The Twister
  The Twister measuring device for spiral (helical) bending measures the rotation of a tube material during spiral bending and transmits the information to the control system. When paired with a CNC-powered Z-axis, the machine can make adjustments to the pitch of the spiral automatically. For the manually controlled Z-Axis, the control system shows the value of the necessary correction, and the operator adjusts the hand-crank manually until the proper pitch is detected by the Twister.
• 3-D Bending Device

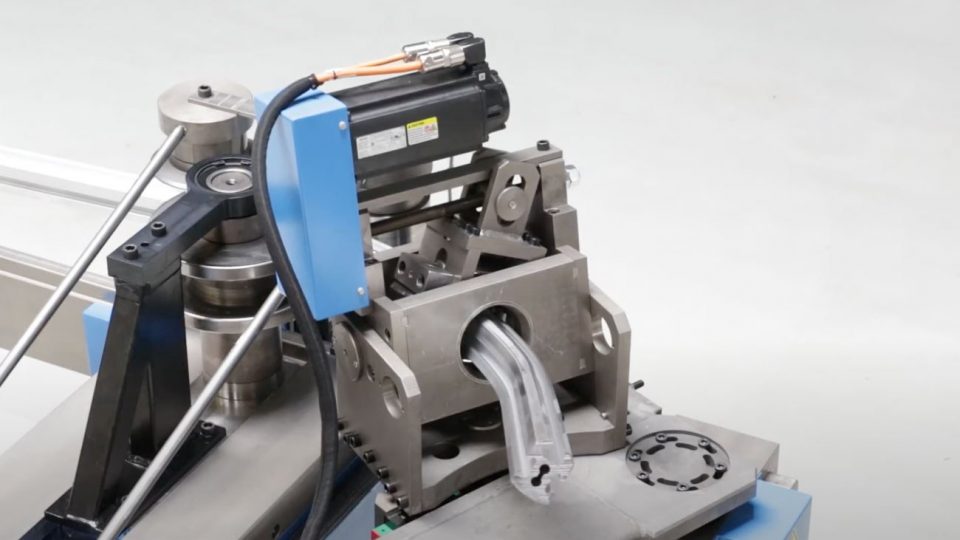

  PBT’s 3-D Bending Device is an essential tool for operators bending unique profiles into complex 3-D shapes, especially when it is essential to control the pitch and angle of the profile throughout the 3-D bend segment. The 3D Bending Device is usually used in conjunction with CNC Z-axis rollers and offers a pitch adjustability of +/- 15 degrees during bending.
