G-TurboBend Press Brake

Ultra-Fast & Productive Bending Capacity

Description

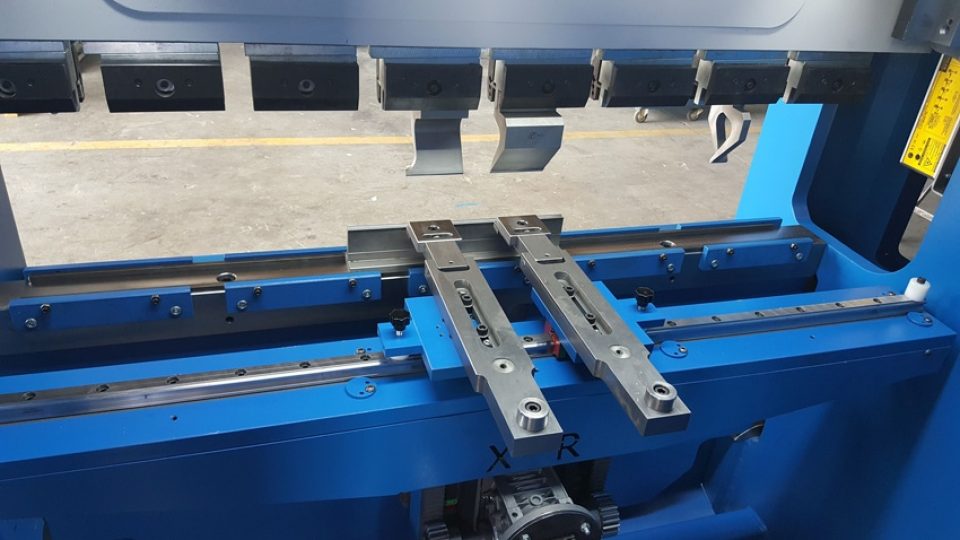

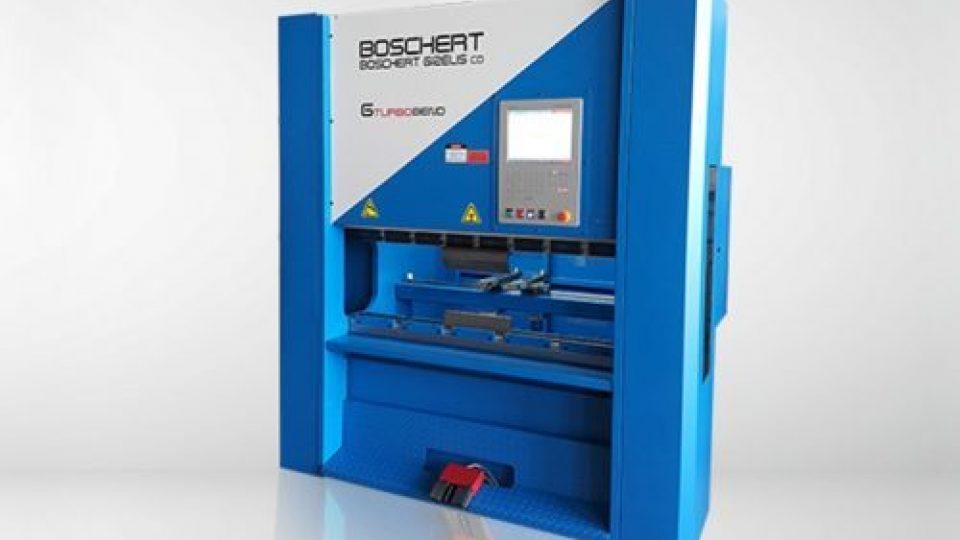

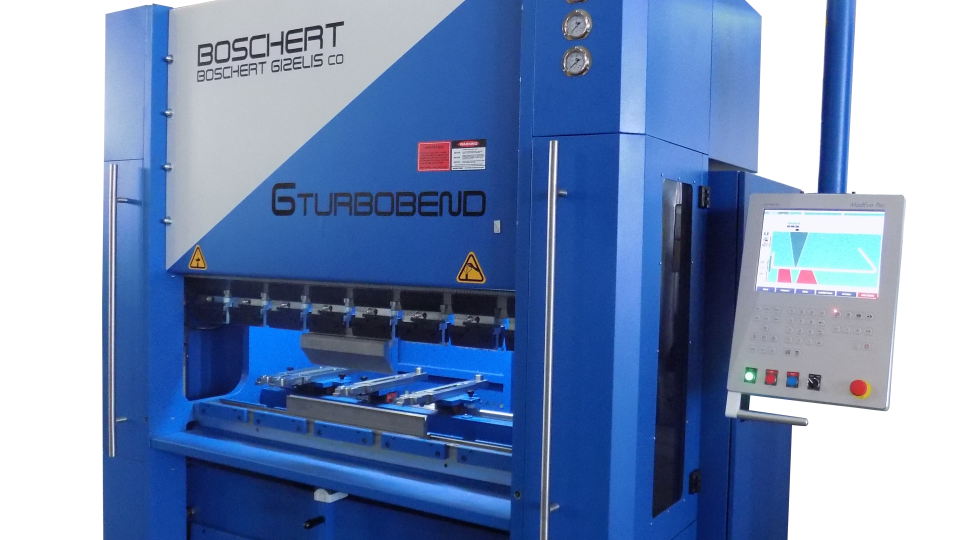

The Boschert Gizelis G-TurboBend is the perfect hydraulic press brake to deliver large quantities of repeat production parts with speed and accuracy. With a bending force of 40 tons, the G-TurboBend bender works with quiet efficiency and rapid speed; up to 260 mm/second. The G-TurboBend can be equipped with several tooling stations to bend multiple smaller parts at a time. Controlled via 2D graphical software on an 8-inch CybTouch screen, the G-TurboBend hydraulic bending machine features an 11 kW main motor, single-axis back gauge system and mechanical upper and lower tool clamping. The G-TurboBend press brake features strong and durable construction with a working length of 1550 mm (distance between uprights). It has Y1 and Y2 independent hydraulic cylinders and proportional valve technology.

Hydraulic Press Brake Technical Data

test
Working power
Working Length
Distance between uprights
Daylight
Stroke length
Approach Speed
Working Speed
Return Speed
Back Gauge Speed
Main Motor
Approximate Floor Space
Height
Approximate weight
Voltage
Control
Drive
Tool Clamping
Metric
40 to / 400 kN
1550mm
1550mm
400mm
250mm
260mm/sec
20mm/sec
200mm/sec
800mm/sec
11kW
2300 x 1550mm
2500mm
4,500kg
3 x 400 V / 50 Hz
CybTouch8 2D graphic Control, 8”
Y¹Y² Independent hydraulic cylinders
Mechanical upper and lower tool clamping
Inch
44 Tons
61”
61”
16”
9.8”
614 ipm
47 ipm
472 ipm
1890 ipm
15 HP
90” x 61”
8’
9,900 lbs
230/3/60
CybTouch8 2D graphic Control, 8”
Y¹Y² Independent hydraulic cylinders
Mechanical upper and lower tool clamping
