Boschert CP-1250 R

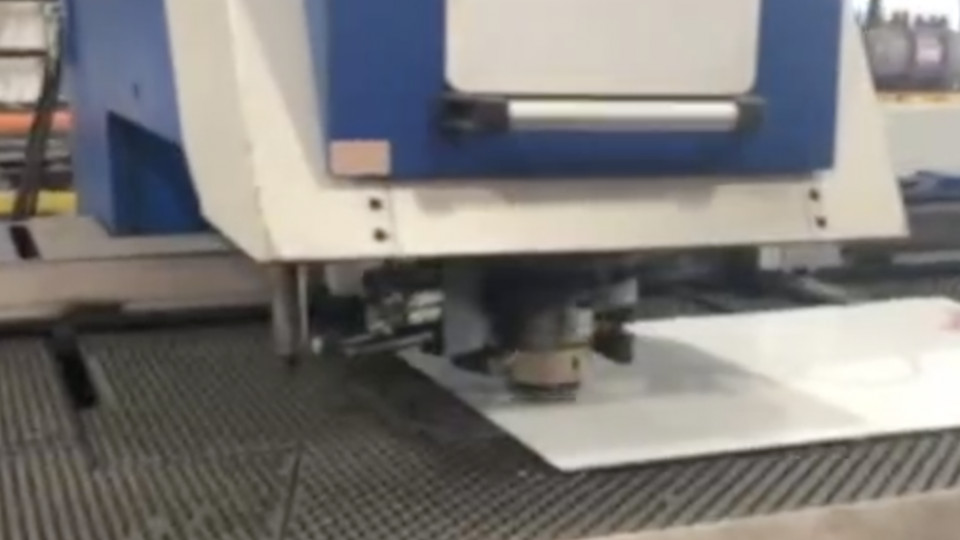

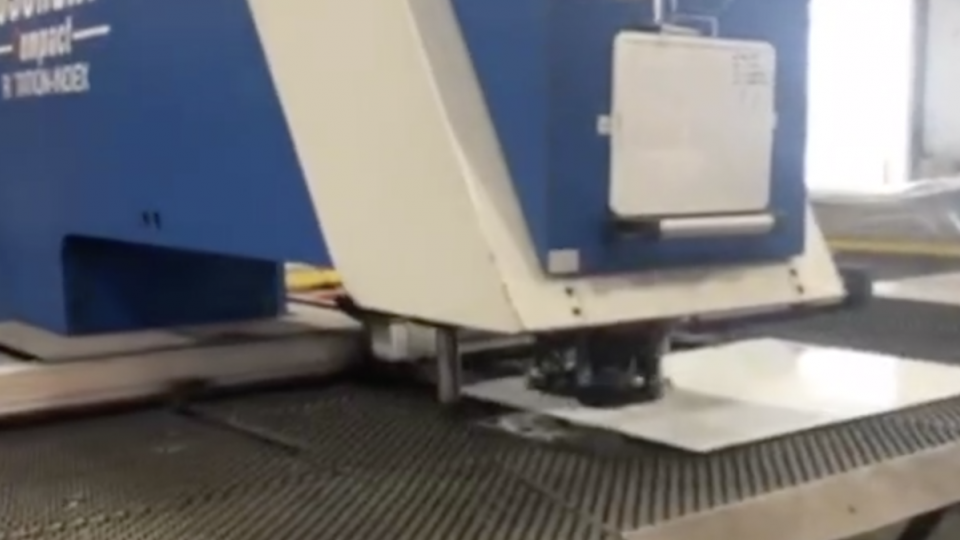

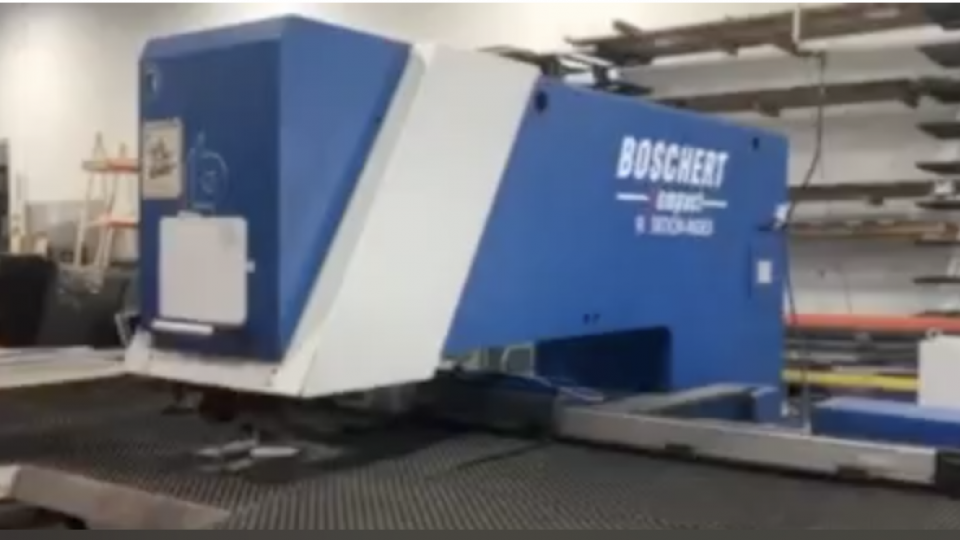

USED Boschert Model CP-1250 Rotation Precision CNC Punching Machine
S/N 284, new 2011

The CP-Rotation series of precision CNC punching machines delivers full rotation to the machine ram, with all tools inserted in the punch head able to be fully indexed to maintain a precision punch.This kind of die alignment is not possible in competitive machines.

The CP-Rotation uses a standard, heavy-duty front-loaded C-frame design. This turret punch is a single station machine with the RevoTool multi-tool head. It is equipped with Trumpf style tooling, has a maximum punch diameter of 4-inches (105mm) and infinitely variable positioning in the rotary axis. The upper and lower rotational axes are powered by 5HP AC digital servo motors, designed for a long life in rugged environments.

Military grade, double-redundant electronic components in the CNC, dual Y-axis ball screws, heavy steel plate welded frames and small overall footprint make the CP-Rotation the perfect addition to any precision shop.

Equipped with:

• Full 360 degree stepless indexing of machine ram and die base
• Revotool, Boschert’s multi-tool solution with full indexing of all tools
• 6-way Revotool head and die plate
• High speed hydraulics
• Vacuum slug removal system

Brushed in table for non-marking movement of sheets

Specifications:

Maximum punching force .......................................... 36 Tons

Maximum working range without repositioning ......... 50” x 80”

Maximum X-Axis with automatic repositioning .................. 39’

Maximum punching diameter...............................................4”

Maximum sheet thickness .................................................. 1⁄4”

Maximum sheet weight with material clamps ..............440 lbs

Maximum positioning speeds

X – axis, longitudinal............................................. 2360 ipm

Y – axis, cross ...................................................... 1180 ipm

Stroke length (variable) ............................................ 0 – 3.54”

Maximum stroke rate ................................................ 800 spm

Axis moves of 0.004” ............................................. 385 spm

Axis moves of 0.008” ............................................. 275 spm

Axis moves of 1.000” ............................................. 175 spm

Positioning accuracy................................................+/- 0.002”

Positioning repeatability...........................................+/- 0.001”

Tool change time

Mono-Tool manual change.......................................15 sec.

RevoTool automatic change.......................................2 sec.

Approximate weight ...............................................23,100 lbs.

Approximate floor space required...............12’ x 11’ x 6’ High

Tools and accessories available (to be confirmed prior to purchase)

Very Good condition, can be inspected under power
