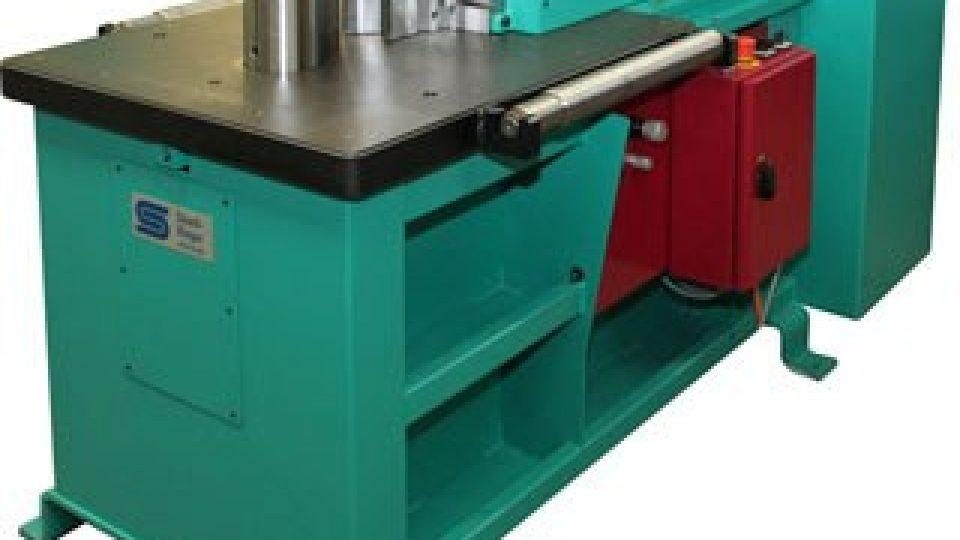

Stierli-Bieger 1300 Horizontal RAM Bending Machine

Description

For the tough jobs, the ultra-compact Stierli-Bieger 1300 Horizontal Ram Bender is your most powerful choice. We’re proud of the solid steel construction that forms a very rigid machine stand. A strong tool holder that spans 300 mm, with a depth of up to 300 mm, allowing for machining tools up to 300 mm. This machine features a very large working plate for efficient positioning of bent parts. It also features a no-maintenance oil-lubricated guided cylinder, and hydro-mechanic stroke restriction. Solid steel construction ensures this bender can stand up to the rigors of your applications. The stroke limitation operates electro-hydraulically with the unique Stierli switch-off system with Vernier scale and 0 mark. The machine can be transported easily using a crane or fork-lift truck. Operate it with the foot switch or special manual control cable, with two modes and a straightening function.

Small Bending Machine Technical Data

test
Working Power
Tool height
Bending output flat
Bending gas pipes
Adjustable stroke
Motor power
Ram speed
Normal voltage
Dimensions
Weight
Colours
1300 kN / 130 to
300 mm
300 / 30 mm
3/8″ – 3″
0 – 350 mm
11.0 kW
0 – 0.6 m/min
400 V / 50 Hz
2450 / 1100 mm
4200 kg
NC 3050 blue-green, NC 4050 wine-red
143 U.S. tons
12″ inch
12 x 1 ¼” inch
3/8″ – 3″
0 – 14″ inch
14.5 HP
0 – 23.6″ inch/min
200 V/220 V / 60 Hz
97″ x 44″ inch
9280 lbs
NCS 3050 blue-green, NCS 4050 wine-red
