Stierli-Bieger 120 Horizontal RAM Bending Machine

Description

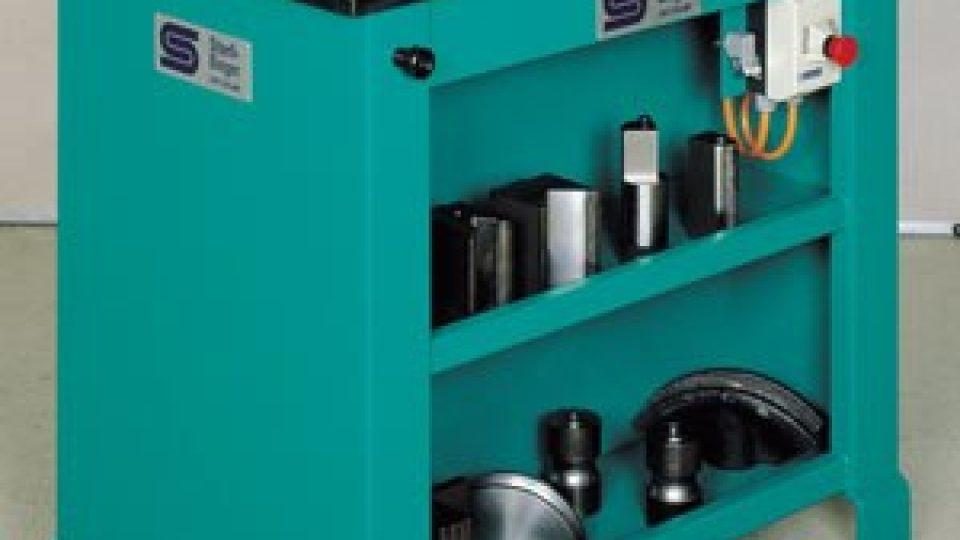

Still compact but with added power, the Stierli-Bieger 120 Horizontal Ram Bender features a bending pin of 60 mm, inserted 110 mm into the plate. This versatile structure accommodates even large bent parts with up to an 120 mm stroke. We’re proud of features like the no-maintenance oil-lubricated guided cylinder and hydro-mechanic stroke restriction. Solid steel construction ensures this bender can stand up to the rigors of all your applications. Built-in tool storage and portability with a fork truck or pallet jack make this a truly unique and valuable machine.

Horizontal Bender Technical Data

test
Working Power
Tool height
Adjustable stroke
Bending output flat
Bending gas pipes
Motor power
Ram speed
Normal voltage
Dimensions
Weight
Mounting
Colours
120 kN / 12 to
130 mm
0 – 170 mm
130 / 12 mm
3/8″ x 1 ½”
1.5 kW
0.6 m/min
400 V / 50 Hz
1050 / 650 mm
420 kg
mobile
NCS 3050 blue-green, NCS 4050 wine red
13 U.S. tons
5″ inch
0 – 6 ¾” inch
5 x ½” inch
3/8″ – 1 ½”
2HP
23.6″ inch/min
200 V/220 V / 60 Hz
41″ x 26″ inch
925 lbs
mobile
NCS 3050 blue-green, NCS 4050 wine red
