Boschert CP-R EVO Series Punching Machine

CNC Punching with 360° Ram Rotation

Description

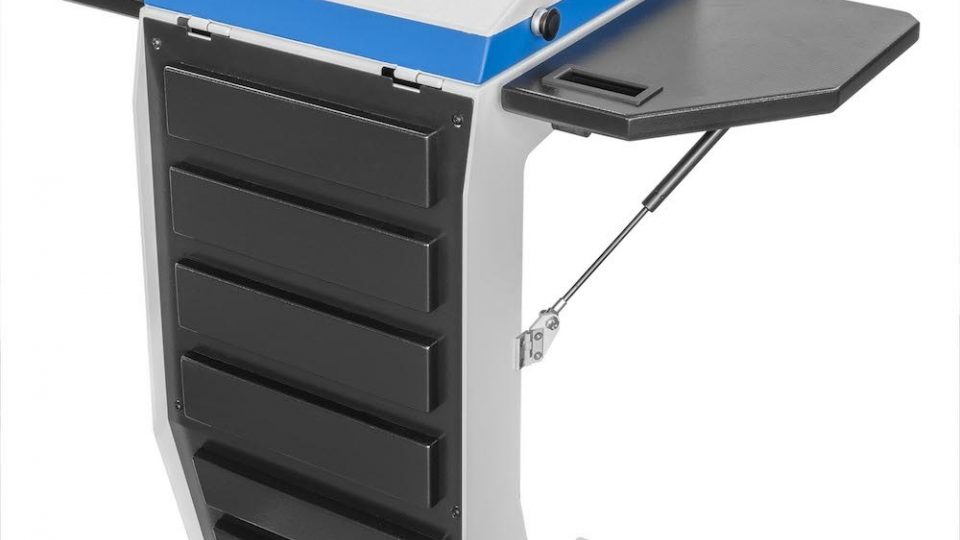

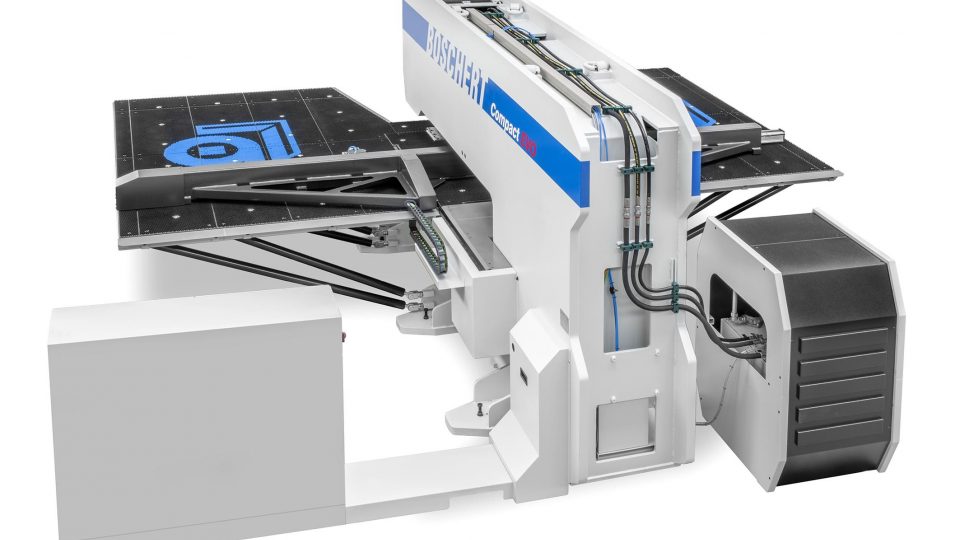

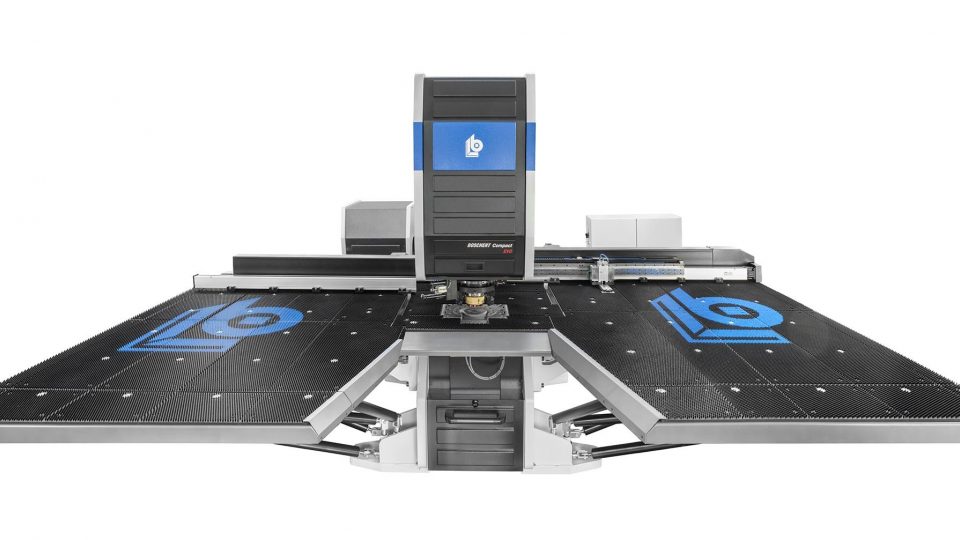

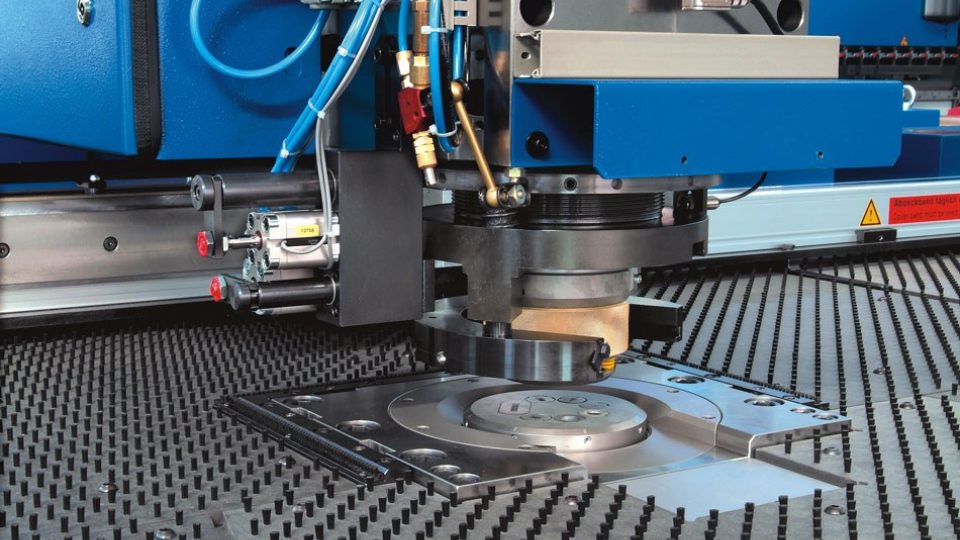

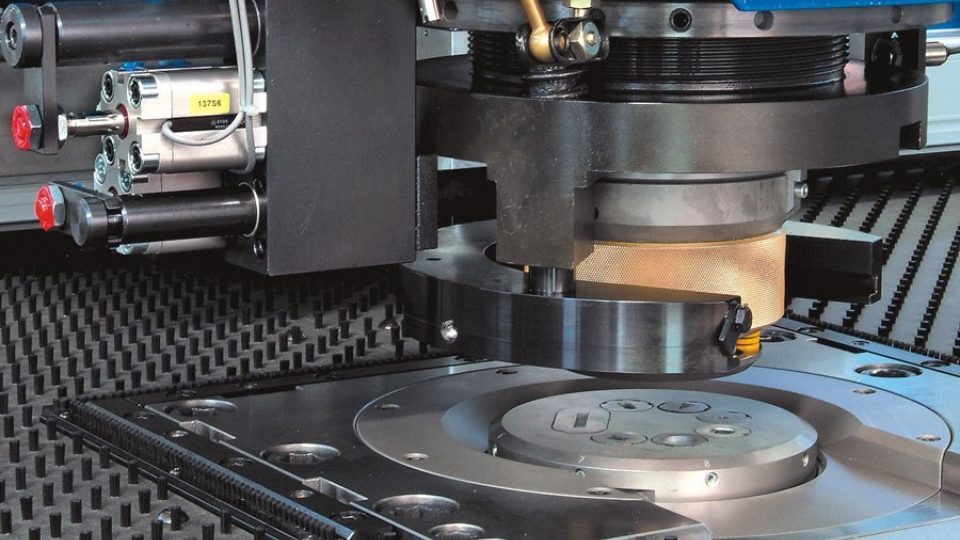

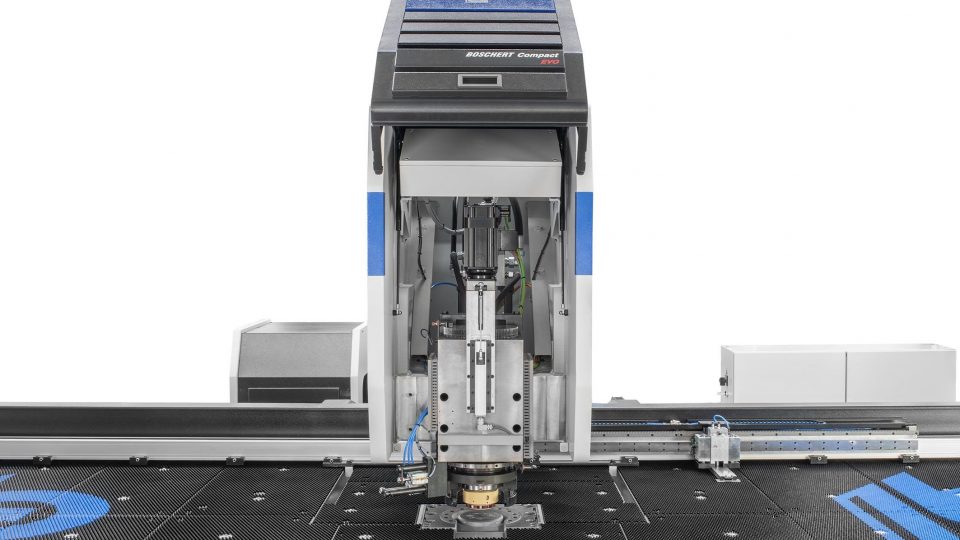

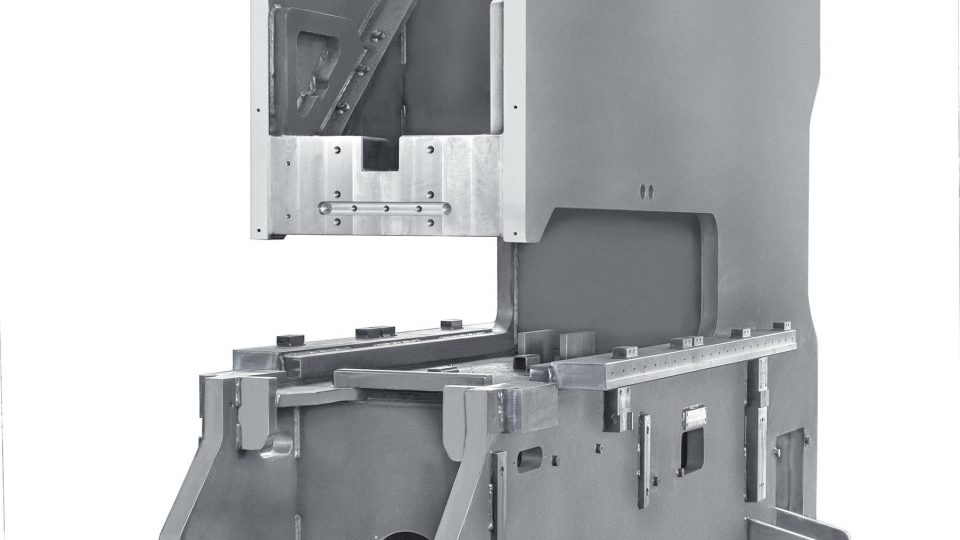

The three configurations of Boschert’s CP-R EVO series punching machines feature 360⁰ ram rotation adding full auto-indexing to every tool, including RevoTool, our multi-tool solution. The seven-way Revotool was especially constructed for this model. In addition to six tools with a diameter of 16 mm each, with a slitting tool of 5 x 30 mm it is possible to punch nearly every contour, allowing complete processing of the sheet without changing tools.

CNC Punching Machine Specifications

test
Working Range
Space Requirements
Weight (lbs.)
Rotation Speed
CP – 1000
40″ x 80″
14’8″ x 13′
20,250
180 rpm
CP – 1250
50″ x 80″
16’6″ x 13′
23,100
180 rpm
CP-1500
60″ x 80″/120″
18/19′ x 13′
27,500
180 rpm

CP-R Series Punching Machine Technical Data

Maximum sheet length 32′

Maximum sheet thickness

With standard clamps 1/4″
With special clamps 1/2″
With RevoTool 1/4″

Maximum punching force

Standard 36 tons

Maximum workpiece weight

Maximum workpiece weight 440 lbs.

Maximum positioning speed

X axis 2,365 ipm
Y axis 1,180 ipm
Combined (x & y diagonally) 2,650 ipm

Maximum punching speed

Standard hydraulics 400 spm
High speed (option w/ oil chiller) 800 spm

Maximum punch diameter 4″
Maximum stroke length 3.54″
RevoTool positions 4, 6, 7 or 8
Tool change time, manual 10 – 15 sec.
Tool change time, RevoTool 2 – 4 sec.

Electrical Consumption at 230 / 460 Volts

Cont. operation (1/8″ material) 4.9 / 7.7 kW/h
Cont. operation (1/4″ material) 5.4 / 8.75 kW/h
Amperage 25 / 35 Amps

Hydraulic motor 7.5 / 15 HP
Comp. air requirement min. 4.5 bar / 65 psi
Hyd. oil resv. 115 liter/160 liter high speed
